Detailed
Features:

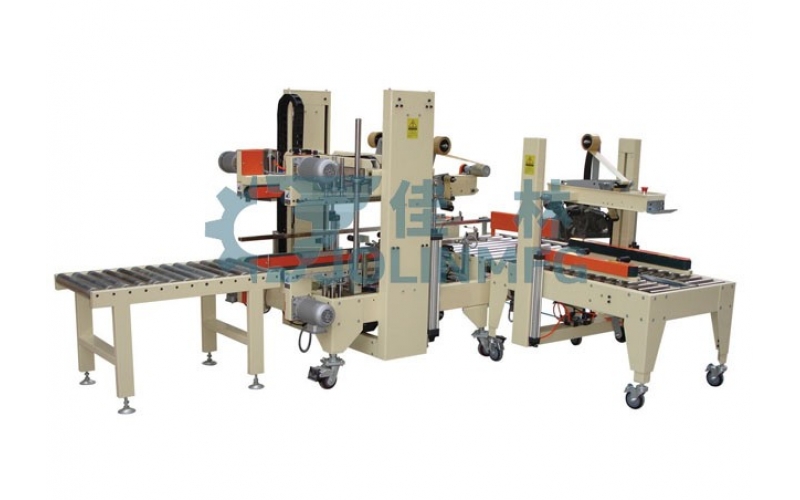

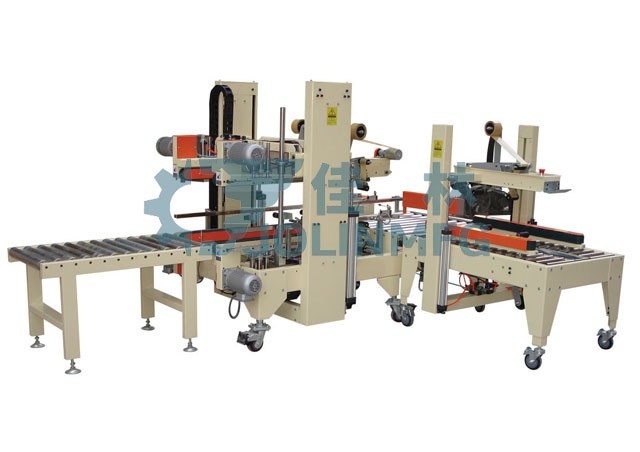

Automatic random flap folding and side belt driven carton sealer(Full auto carton flap folding sealer)
Fully automatic adjustment on height and width for various size carton.
Automatic flaps folding and top and bottom sealing.
Safety feature for operator protection.
Sealed carton width & height can be adjusted by full auto pneumatic and especially which suitable for complex production line of converting carton size
| STANDARD SPECIFICATION | |
| Model | JTI-09 |
| Carton size | (L)200 - 600mm (W)150 -500mm (H) 150-500mm |
| Table height | min. 650mm，max. 800 mm |
| Working speed | 750 (ctns/hr) |
| Machine size | (L)1700mm (W)910mm (H)1570mm |
| Power | 110 / 220V single phase, 50 / 60 Hz or, specified by client |
| Pneumatic | 5kg |
| Tape width | 48mm, 75mm alternative use |
Machine net weight | approx.230kgs |
