Detailed

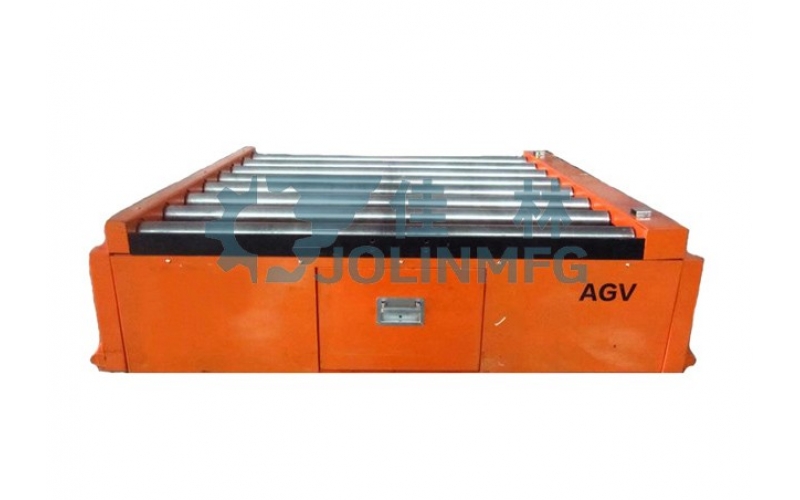

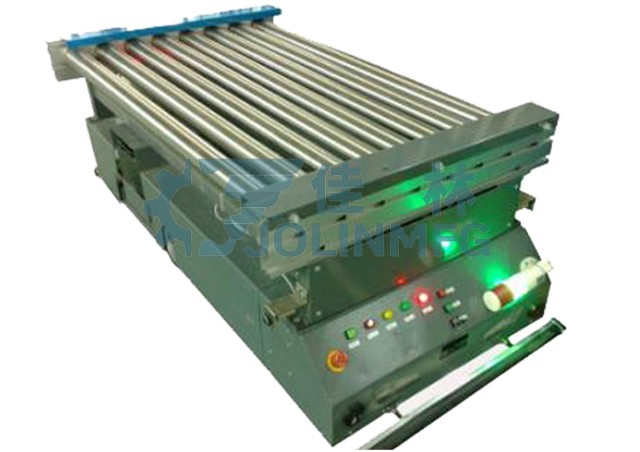

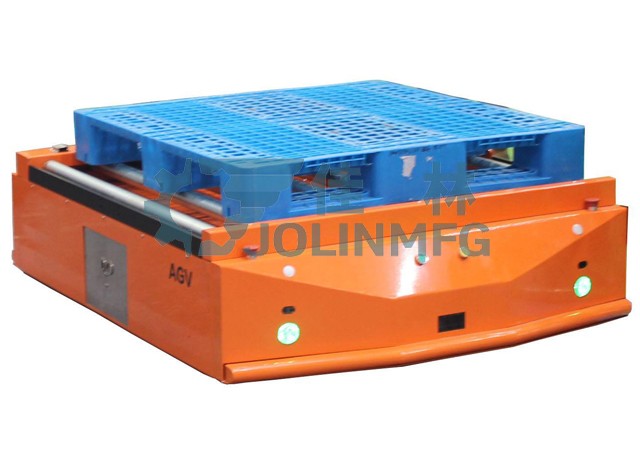

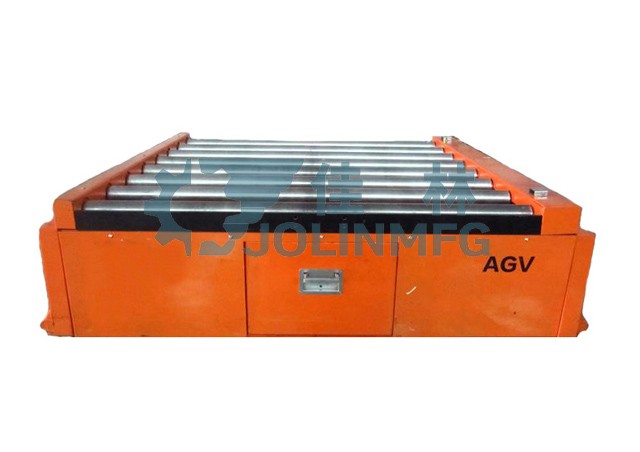

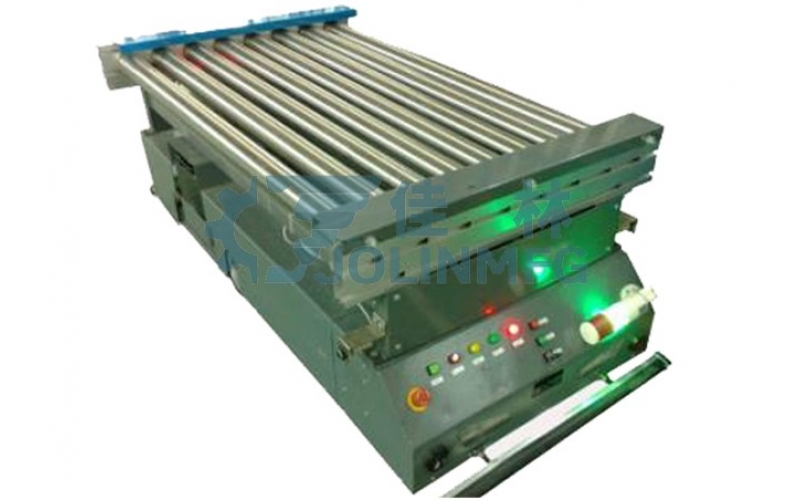

AGV,a kindof mobile robot which can follow magnetic tape on the floor by using vision or magnet for navigation. It is mostly applied in the filed of warehouse storage, food or beverage,plastic, pharmaceutical, rubber industry, etc. It is used to convey material inside the warehouse or workshop.Adjustable Floor Supports Available Specification:
Appearance size: 50 x 50 x 20cm / 19.68" x 19.68" x 7.87"
Rated load: 100KG
Lifting height: 0 ~ 5cm
Navigation method: infrared laser
Function introduction: Lift, forward and backward, turn left and right, rotate in place
| Product sizes | L 1400*W 420*H290mm |
| Guide mode | Magnetic stripe guided |
| Drive mode | Differential drive |
| Loading capacity | 500-1000kg |
| Moving speed | 45m per minute or customized |
| Turning radius | 800mm (radius of magnetic stripe) |
| Navigation precision | ±10mm |
| Charge mode | Manual or automatic charging |
| Safety sensing range | <=3m, adjustable. Emergency braking distance no more than 20mm |
| Alarm mode | Sound-light alarm |
| Battery | Lead-acid or lithium battery |
| Security device | Obstacle detection, mechanical anti-collision device, scram button |
| Service life | More than 10 years |
